虚表 —— 模拟属性框

光庆 3月前 695

写了个简单的属性框例程，抛砖引玉，期待你做出更丰富强大的功能。

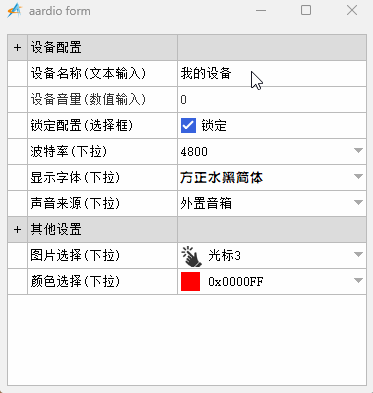

本例演示：折叠子行、选择框、输入文本、输入数值、下拉选择、选择图片、选择颜色、选择字体等功能。

只有想不到，没有做不到，发挥你的想象力吧。

import win.ui;
import godking.comboboxEx
import godking.vlistEx
/*DSG{{*/
var winform = win.form(text="aardio form";right=375;bottom=367)
winform.add(
vlistEx={cls="vlistEx";text="自定义控件";left=8;top=8;right=368;bottom=360;border=1;dl=1;dt=1;z=1}
)
/*}}*/
import godking.paint
import inet.http
var p = godking.paint.fromBitmap("https://img95.699pic.com/xsj/07/ir/z7.jpg%21/fh/200" /*宽*/,/*高*/);
var imgs,curs = p.splitImage(4,4,10,10,10,10),{};
p.close();
for(i=1;16;1){
    ..table.push(curs,"光标"++i);
}
winform.show();
winform.vlistEx.setTable({
{"+","设备配置","","[@treeLevel]"=0}
{"","设备名称(文本输入)","我的设备","[@treeLevel]"=1}
{"","设备音量(数值输入)","0","[@treeLevel]"=1}
{"","锁定配置(选择框)","","[@treeLevel]"=1}
{"","波特率(下拉)","9600","[@treeLevel]"=1}
{"","显示字体(下拉)","楷体","[@treeLevel]"=1}
{"","声音来源(下拉)","蜂鸣器","[@treeLevel]"=1}
{"+","其他设置","","[@treeLevel]"=0}
{"","图片选择(下拉)","光标1","[@treeLevel]"=1}
{"","颜色选择(下拉)","0xFF0000","[@treeLevel]"=1}
} /*数据表*/,/*列标题*/,{20,150,-1}/*列宽*/,/*0左1中2右*/,/*字典转为数组*/,/*字符串转为Utf8*/,/*是否克隆新表*/)
winform.vlistEx.hideLineV = 3;
winform.vlistEx.onResizeCol = false; //不允许改变列宽
winform.vlistEx.setHeaderHeight(0); //隐藏表头
winform.vlistEx.setColumnType(3/*列号*/,1/*_vlistEx_ColType_ComboBox*/,true/*是否显示箭头或图片*/,0xAAAAAA/*箭头颜色或图片*/ );
winform.vlistEx.onEditBegin = {true,3}; //只有第3列允许编辑
winform.vlistEx.selectedBkColor = 0xFFFFFF;
winform.vlistEx.setColumnAlign(1 /*列号*/,1/*0左1中2右*/,1/*0顶1中2底*/);
winform.vlistEx.editOnClick = true; //单击时编辑
winform.vlistEx.comboboxFilter = function(row,col,text){
    var rrow = winform.vlistEx.getHideRowRealIndex(row /*虚表当前显示行号*/);
    if ..table.find({5,6,7,9,10},rrow) return true;
    if ..table.find({2,3},rrow) return 0;
    return false;
}
winform.vlistEx.onComboBoxDropDown = function(comboBox,row,col){
    var rrow = winform.vlistEx.getHideRowRealIndex(row /*虚表当前显示行号*/);
    if rrow===10 { // 颜色选择框
        comboBox.setColors({0xFF0000,0x00FF00,0x0000FF}/*颜色值数组*/,/*背景颜色*/,"BGR"/*显示文本数组*/,/*附加数据数组*/,/*宽度*/,/*高度*/)
        return ;
    }
    if rrow===9 {  // 图片选择框
        comboBox.setImages(imgs/*图像数组*/,0x00000000/*背景颜色*/,curs/*显示文本数组*/,/*附加数据数组*/,30/*宽度*/,30/*高度*/)
        return ;
    }
    var items={};
    if rrow===4 items={"是","否"};
    if rrow===5 items={"2400","4800","9600","115200"};
    if rrow===6 {  // 字体选择框
        import win.font;
        win.font.enum(
        	function(logfont,fullname,ftype,style,script,lpntme){
        		if fullname[[1]]!=="@" ..table.push(items,fullname);
        	},{ charset = 0x86/*_GB2312_CHARSET*/; name = "" }
        )
    }
    if rrow===7 items={"蜂鸣器","外置音箱"};
    owner.setComboBoxItems(items,0/*可见项数量*/,null/*图片组*/);
}
winform.vlistEx.onEditEnd = function(row/*行*/,col/*列*/,text/*内容*/,endType/*结束类型*/){
    var rrow = winform.vlistEx.getHideRowRealIndex(row /*虚表当前显示行号*/);
    if rrow===3 { //第三行，验证数值输入的合法性
        var v = tonumber(text):0;
        if v>100 or v<0 {
            ..win.msgbox("取值范围 0 ～ 100");
        } else {
	        winform.vlistEx.setCellText(rrow /*行号*/,col/*列号或字典key*/,tostring(v)/*单元格文本*/);
	    }
    } else { //其他行，直接修改单元格内容
        winform.vlistEx.setCellText(rrow /*行号*/,col/*列号或字典key*/,text/*单元格文本*/);
    }
    return false; //因为行收缩的原因，rrow与row不一定一致，所以此处禁止自动修改单元格内容。
}
winform.vlistEx.onDrawCellBg = function(row,col,hdc,rect,bkcolor,text){
    var rrow = winform.vlistEx.getHideRowRealIndex(row /*虚表当前显示行号*/);
    if rrow===1 or rrow===8 return false,0xDDDDDD;  //第1行、第8行，折叠单元格背景颜色
}
winform.vlistEx.onDrawCellRectContent = function(row,col,hdc,rect,bkcolor,text,font,colalign){
	if col!==3 return ;
    var rrow = winform.vlistEx.getHideRowRealIndex(row /*虚表当前显示行号*/);
    if rrow===9 { // 第9行、第3列，图片单元格，绘制图片框
        var index = ..table.find(curs,text);
        if index {
            var w = rect.height();
            var r = rect.copy(w,w).inflate(-1,-1);
            ..gdi.drawBitmap(hdc,imgs[index].copyHandle(w,w),r);
            return false,null,"    "+text;
        }
    }
    if rrow===10 { // 第10行、第3列，颜色单元格，绘制颜色框
        var w = rect.height();
        var r = rect.copy(w,w).inflate(-1,-1);
        ..gdi.fillRect(hdc,eval(text),r);
        return false,null,"    "+text;
    }
    if rrow===4 { // 第4行、第3列，选择框单元格，绘制选择框
        winform.vlistEx.drawCheckBox(hdc,rect.left+1,rect.top+3,rect.height()-6/*大小*/,winform.vlistEx.getChecked(rrow)/*是否选中*/,/*正常颜色*/,/*选中颜色*/,/*对号颜色*/,/*是否单选*/)
        return false,null,"   锁定";
    }
    if rrow===6 { // 第6行、第3列，字体择框单元格，改变单元格字体
    	font.name = text;
    }
}
winform.vlistEx.onClick = function(row/*行*/,col/*列*/,x,y,buttonIndex/*按钮序号*/){
    var rrow = winform.vlistEx.getHideRowRealIndex(row /*虚表当前显示行号*/);
    if ..table.find({1,8},rrow) { // 折叠第1行、第8行
        winform.vlistEx.hideSubRow(rrow /*行号*/,winform.vlistEx.isUnHideSubRow(rrow)/*是否隐藏*/,true/*是否立即刷新*/);
    }
    if rrow===4 and col===3 { // 改变选择框状态为反选
        winform.vlistEx.setChecked(rrow /*行号*/,-1/*勾选状态*/);
    }
}
win.loopMessage();

可自动存取设置的属性框例程：

主意：需要最新版 godking 扩展函数库文件 _.aardio。

import win.ui;
import godking.comboboxEx
import godking.vlistEx
/*DSG{{*/
var winform = win.form(text="aardio 属性框自动存取配置例程";right=375;bottom=367)
winform.add(
vlistEx={cls="vlistEx";text="自定义控件";left=8;top=8;right=368;bottom=360;border=1;dl=1;dt=1;z=1}
)
/*}}*/

//处理光标文件
import godking.paint
import inet.http
var p = godking.paint.fromBitmap("https://img95.699pic.com/xsj/07/ir/z7.jpg%21/fh/200" /*宽*/,/*高*/);
var imgs,curs = p.splitImage(4,4,10,10,10,10),{};
p.close();
for(i=1;16;1){
    ..table.push(curs,"光标"++i);
}

//定义自动加载函数
winform.vlistEx.autoload = function(v){
	if owner.loaded return ;
	v := {
		{"+","设备配置","","[@treeLevel]"=0}
		{"","设备名称(文本输入)","我的设备","[@treeLevel]"=1}
		{"","设备音量(数值输入)","0","[@treeLevel]"=1}
		{"","锁定配置(选择框)","","[@treeLevel]"=1}
		{"","波特率(下拉)","9600","[@treeLevel]"=1}
		{"","显示字体(下拉)","楷体","[@treeLevel]"=1}
		{"","声音来源(下拉)","蜂鸣器","[@treeLevel]"=1}
		{"+","其他设置","","[@treeLevel]"=0}
		{"","图片选择(下拉)","光标1","[@treeLevel]"=1}
		{"","颜色选择(下拉)","0xFF0000","[@treeLevel]"=1}
	}
	owner.setTable( v/*数据表*/,/*列标题*/,{20,150,-1}/*列宽*/,/*0左1中2右*/,/*字典转为数组*/,/*字符串转为Utf8*/,/*是否克隆新表*/)
	owner.hideLineV = 3;
	owner.onResizeCol = false; //不允许改变列宽
	owner.setHeaderHeight(0); //隐藏表头
	owner.setColumnType(3/*列号*/,1/*_vlistEx_ColType_ComboBox*/,true/*是否显示箭头或图片*/,0xAAAAAA/*箭头颜色或图片*/ );
	owner.onEditBegin = {true,3}; //只有第3列允许编辑
	owner.selectedBkColor = 0xFFFFFF;
	owner.setColumnAlign(1 /*列号*/,1/*0左1中2右*/,1/*0顶1中2底*/);
	owner.editOnClick = true; //单击时编辑
	owner.loaded = true;
	owner.update();
}
winform.show();

// 定义自动存取配置文件
import godking
godking.bindConfig( winform, "d:\", {
    vlistEx = {_set=winform.vlistEx.autoload;_get=winform.vlistEx.getTable};
});
winform.vlistEx.autoload();

//定义虚表各种事件
winform.vlistEx.comboboxFilter = function(row,col,text){
    var rrow = winform.vlistEx.getHideRowRealIndex(row /*虚表当前显示行号*/);
    if ..table.find({5,6,7,9,10},rrow) return true;
    if ..table.find({2,3},rrow) return 0;
    return false;
}
winform.vlistEx.onComboBoxDropDown = function(comboBox,row,col){
    var rrow = winform.vlistEx.getHideRowRealIndex(row /*虚表当前显示行号*/);
    if rrow===10 { // 颜色选择框
        comboBox.setColors({0xFF0000,0x00FF00,0x0000FF}/*颜色值数组*/,/*背景颜色*/,"BGR"/*显示文本数组*/,/*附加数据数组*/,/*宽度*/,/*高度*/)
        return ;
    }
    if rrow===9 {  // 图片选择框
        comboBox.setImages(imgs/*图像数组*/,0x00000000/*背景颜色*/,curs/*显示文本数组*/,/*附加数据数组*/,30/*宽度*/,30/*高度*/)
        return ;
    }
    var items={};
    if rrow===4 items={"是","否"};
    if rrow===5 items={"2400","4800","9600","115200"};
    if rrow===6 {  // 字体选择框
        import win.font;
        win.font.enum(
            function(logfont,fullname,ftype,style,script,lpntme){
                if fullname[[1]]!=="@" ..table.push(items,fullname);
            },{ charset = 0x86/*_GB2312_CHARSET*/; name = "" }
        )
    }
    if rrow===7 items={"蜂鸣器","外置音箱"};
    owner.setComboBoxItems(items,0/*可见项数量*/,null/*图片组*/);
}
winform.vlistEx.onEditEnd = function(row/*行*/,col/*列*/,text/*内容*/,endType/*结束类型*/){
    var rrow = winform.vlistEx.getHideRowRealIndex(row /*虚表当前显示行号*/);
    if rrow===3 { //第三行，验证数值输入的合法性
        var v = tonumber(text):0;
        if v>100 or v<0 {
            ..win.msgbox("取值范围 0 ～ 100");
        } else {
            winform.vlistEx.setCellText(rrow /*行号*/,col/*列号或字典key*/,tostring(v)/*单元格文本*/);
        }
    } else { //其他行，直接修改单元格内容
        winform.vlistEx.setCellText(rrow /*行号*/,col/*列号或字典key*/,text/*单元格文本*/);
    }
    return false; //因为行收缩的原因，rrow与row不一定一致，所以此处禁止自动修改单元格内容。
}
winform.vlistEx.onDrawCellBg = function(row,col,hdc,rect,bkcolor,text){
    var rrow = winform.vlistEx.getHideRowRealIndex(row /*虚表当前显示行号*/);
    if rrow===1 or rrow===8 return false,0xDDDDDD;  //第1行、第8行，折叠单元格背景颜色
}
winform.vlistEx.onDrawCellRectContent = function(row,col,hdc,rect,bkcolor,text,font,colalign){
    if col!==3 return ;
    var rrow = winform.vlistEx.getHideRowRealIndex(row /*虚表当前显示行号*/);
    if rrow===9 { // 第9行、第3列，图片单元格，绘制图片框
        var index = ..table.find(curs,text);
        if index {
            var w = rect.height();
            var r = rect.copy(w,w).inflate(-1,-1);
            ..gdi.drawBitmap(hdc,imgs[index].copyHandle(w,w),r);
            return false,null,"    "+text;
        }
    }
    if rrow===10 { // 第10行、第3列，颜色单元格，绘制颜色框
        var w = rect.height();
        var r = rect.copy(w,w).inflate(-1,-1);
        ..gdi.fillRect(hdc,eval(text),r);
        return false,null,"    "+text;
    }
    if rrow===4 { // 第4行、第3列，选择框单元格，绘制选择框
        winform.vlistEx.drawCheckBox(hdc,rect.left+1,rect.top+3,rect.height()-6/*大小*/,winform.vlistEx.getChecked(rrow)/*是否选中*/,/*正常颜色*/,/*选中颜色*/,/*对号颜色*/,/*是否单选*/)
        return false,null,"   锁定";
    }
    if rrow===6 { // 第6行、第3列，字体择框单元格，改变单元格字体
        font.name = text;
    }
}
winform.vlistEx.onClick = function(row/*行*/,col/*列*/,x,y,buttonIndex/*按钮序号*/){
    var rrow = winform.vlistEx.getHideRowRealIndex(row /*虚表当前显示行号*/);
    if ..table.find({1,8},rrow) { // 折叠第1行、第8行
        winform.vlistEx.hideSubRow(rrow /*行号*/,winform.vlistEx.isUnHideSubRow(rrow)/*是否隐藏*/,true/*是否立即刷新*/);
    }
    if rrow===4 and col===3 { // 改变选择框状态为反选
        winform.vlistEx.setChecked(rrow /*行号*/,-1/*勾选状态*/);
    }
}

win.loopMessage();
