aardio中，win.ui.menu库调用的是user32.dll中win32菜单组件，它底层基于GDI实现所以不支持 Alpha 通道，这就导致win.ui.menu库生成的菜单不支持背景透明的png或者gif图标。
下面演示一种方法：利用无标题栏winform和plus控件模拟弹出菜单，在plus控件中显示透明背景的png图标，实现弹出菜单项图标背景透明的效果。
（ 下例因加载网络图片的缘故，导致程序启动较慢，实际生产环境可将图片放在资源文件夹中放载就好了 ）
// 自定义弹出菜单 @Mr_MAO
import win.ui;
import fonts.fontAwesome;
import inet.http;
import gdip.bitmap;
class customPopMenu {
ctor(parent){
this._parent = parent;
this.items = {};
this.itemHeight = 32;
this.width = 135;
this.fontSize = 12;
this.iconSize = 16;
this.backgroundColor = 0xFFf0f0f0;
};
// 添加菜单项
add = function(text, callback, icon){
..table.push(this.items, { text = text; callback = callback; icon = icon });
};
// 添加分隔线
addSeparator = function(){
..table.push(this.items, { isSeparator = true });
};
// 弹出菜单
popup = function(x, y){
if( !(x && y) ){
x, y = ..win.getMessagePos();
}
var totalH = 6;
for(i, item in this.items){
totalH += item.isSeparator ? 6 : this.itemHeight;
}
x += 20; y += 20;
// 创建弹出窗体
var frm = ..win.form(
parent = this._parent; title = false;
right = this.width; bottom = totalH;
border = "dialog frame"; exmode="toolwindow"; mode="popup";
bgcolor = this.backgroundColor;
)
var currentY = 3;
var ctrlList = {};
for(i, item in this.items){
if(item.isSeparator){
frm.add({
["sep"+i] = {
cls = "plus"; left = 8; top = currentY + 2; right = this.width - 8;
bottom = currentY + 3; bgcolor = 0xE0E0E0; z = i
}
});
currentY += 6;
continue;
}
var ctrlArgs = {
cls = "plus"; left = 0; top = currentY; right = this.width; bottom = currentY + this.itemHeight;
text = item.text;
align = "left";
font = LOGFONT(h = -this.fontSize); color = 0x333333;
textPadding = { left = 35 };
notify = 1; z = i;
};
if(item.icon){
if(type(item.icon) == type.string && #item.icon <= 8){
ctrlArgs.iconText = item.icon;
ctrlArgs.iconStyle = {
font = LOGFONT(h = -this.iconSize; name = 'FontAwesome');
align = "left"; padding = { left = 7 };
};
}
else {
ctrlArgs.foreground = item.icon;
ctrlArgs.foreRepeat = "point";
ctrlArgs.foreAlign = "left";
ctrlArgs.x = 8; ctrlArgs.y = (this.itemHeight - 16) / 2;
}
}
var ctrl = frm.add({ ["item"+i] = ctrlArgs })["item"+i];
..table.push(ctrlList, ctrl);
ctrl.skin({
background = { default = this.backgroundColor; hover = 0xFFE8F0FE; active = 0xFFD0E0FC };
color = { default = 0xFF333333; hover = 0xFF0078D4 };
});
var callback = item.callback;
ctrl.onMouseClick = function(){
frm.close();
if(callback) callback();
}
currentY += this.itemHeight;
}
frm.wndproc = function(hwnd, message, wParam, lParam){
if(message == 0x6/*_WM_ACTIVATE*/){
if((wParam & 0xFFFF) == 0){
::PostMessage(hwnd, 0x400, 0, 0);
}
}
if(message == 0x400){
frm.close();
}
}
frm.setPos(x, y);
..win.setForeground(frm.hwnd);
frm.show();
};
}
// 准备3张png图片
var imgPath1 = "https://cdn-icons-png.flaticon.com/512/609/609803.png"; //home-icon
var bmpIcon1 = gdip.bitmap(imgPath1).resize(18,18);
var imgPath2 = "https://cdn-icons-png.flaticon.com/512/724/724713.png"; //chat-icon
var bmpIcon2 = gdip.bitmap(imgPath2).resize(18,18);
var imgPath3 = "https://cdn-icons-png.flaticon.com/512/9451/9451615.png"; //security-icon
var bmpIcon3 = gdip.bitmap(imgPath3).resize(18,18);
/*DSG{{*/
var winform = win.form(text="自定义弹出菜单 - (支持fontAwesome图标和背景透明的png图标)";right=759;bottom=469)
winform.add(
hint={cls="bk";text="右键点击窗口,弹出自定义菜单";left=192;top=178;right=551;bottom=266;color=0x999999;db=1;dl=1;dr=1;dt=1;font=LOGFONT(h=-16);z=1}
)
/*}}*/
winform.wndproc = function(hwnd, message, wParam, lParam) {
if(message == 0x205/*_WM_RBUTTONUP*/){
// 创建菜单实例
var menu = customPopMenu(winform);
menu.backgroundColor = 0xFFFFFFFF;
// 添加字体图标项
menu.add("账户信息",
function(){
winform.msgbox("点击了: 账户信息","提示");
},
'\uF007'
);
menu.add("搜索查找",
function(){
winform.msgbox("点击了: 搜索查找","提示");
},
'\uF002'
);
menu.add("系统设置",
function(){
winform.msgbox("点击了: 系统设置","提示");
},
'\uF013'
);
menu.addSeparator();
// 添加位图图标项
menu.add("返回主页", function(){
winform.msgbox("点击了: 返回主页","提示");
}, bmpIcon1);
menu.add("反馈与交流", function(){
winform.msgbox("点击了: 反馈与交流","提示");
}, bmpIcon2);
menu.add("隐私与安全", function(){
winform.msgbox("点击了: 隐私与安全","提示");
}, bmpIcon3);
menu.addSeparator();
// 添加一个'退出'项
menu.add("退出程序", function(){
winform.close();
}, '\uF011');
// 弹出菜单
menu.popup();
}
}
winform.show();
win.loopMessage();
最新回复 (10)
-
-
-
-
-

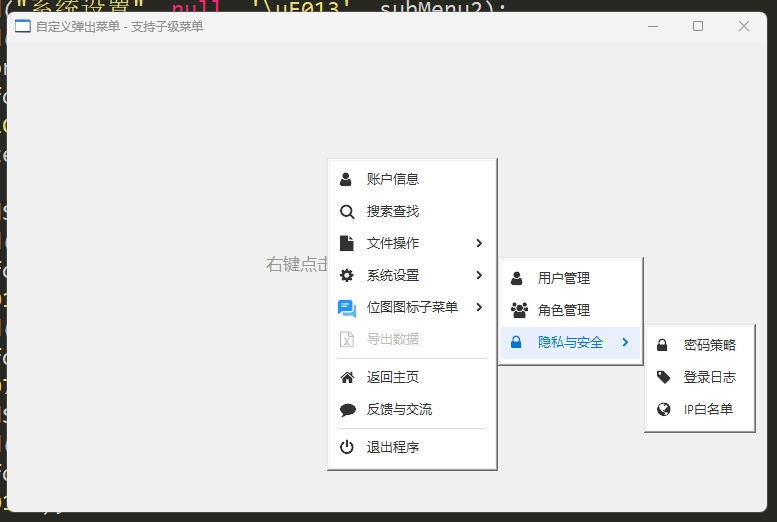

AI升级版
// 自定义弹出菜单（支持子级菜单）@Mr_MAO import win.ui; import fonts.fontAwesome; import inet.http; import gdip.bitmap; class customPopMenu { ctor(parent){ this.parentWnd = parent; this.ownerMenu = null; this.childMenu = null; this.menuFrm = null; this.hoverIdx = null; this.inClosing = false; this.items = {}; this.itemHeight = 32; this.minWidth = 100; this.fontSize = 12; this.iconSize = 16; this.backgroundColor = 0xFFf0f0f0; this.createArrowBitmap = function(){ if(this.arrowBitmapDefault) return; var sz = 16; var fnt = ..gdip.font("FontAwesome", 10); var fmt = ..gdip.stringformat(); fmt.setAlignment(1); fmt.setLineAlignment(1); this.arrowBitmapDefault = ..gdip.bitmap(sz, sz); var g1 = this.arrowBitmapDefault.getGraphics(); g1.setTextRenderingHint(3); var brush1 = ..gdip.solidBrush(0xFF333333); g1.drawString('\uF054', fnt, ::RECTF(0,0,sz,sz), fmt, brush1); g1.dispose(); brush1.dispose(); this.arrowBitmapHover = ..gdip.bitmap(sz, sz); var g2 = this.arrowBitmapHover.getGraphics(); g2.setTextRenderingHint(3); var brush2 = ..gdip.solidBrush(0xFF0078D4); g2.drawString('\uF054', fnt, ::RECTF(0,0,sz,sz), fmt, brush2); g2.dispose(); brush2.dispose(); fnt.dispose(); fmt.delete(); }; this.createArrowBitmap(); }; add = function(text, callback, icon, submenu){ var item = { text = text; callback = callback; icon = icon; submenu = submenu; disabled = false; }; ..table.push(this.items, item); return item; }; addSeparator = function(){ ..table.push(this.items, { isSeparator = true }); }; getRoot = function(){ var menu = this; while(menu.ownerMenu) menu = menu.ownerMenu; return menu; }; closeChain = function(){ this.inClosing = true; if(this.childMenu){ this.childMenu.closeChain(); this.childMenu = null; } if(this.menuFrm){ this.menuFrm.close(); this.menuFrm = null; } this.inClosing = false; }; closeChild = function(){ if(this.childMenu){ this.childMenu.closeChain(); this.childMenu = null; this.hoverIdx = null; } }; openSubmenu = function(itemIndex, itemTop, submenuRef){ this.closeChild(); submenuRef.backgroundColor = this.backgroundColor; var formRect = this.menuFrm.getRect(true); var subX = formRect.right; var subY = formRect.top + itemTop; submenuRef.ownerMenu = this; submenuRef.popup(subX, subY, true); this.childMenu = submenuRef; this.hoverIdx = itemIndex; }; calcWidth = function(){ var bmp = ..gdip.bitmap(10, 10); var g = bmp.getGraphics(); var fnt = ..gdip.font("Microsoft YaHei", this.fontSize, 3); var layoutRect = ::RECTF(0, 0, 9999, 9999); var iconArea = 35; var arrowArea = 22; var padding = 16; var maxWidth = 0; for(i, item in this.items){ if(item.isSeparator) continue; var rect = g.measureString(item.text, fnt, layoutRect); var itemW = iconArea + ..math.ceil(rect.width) + padding; if(item.submenu) itemW += arrowArea; if(itemW > maxWidth) maxWidth = itemW; } g.dispose(); bmp.dispose(); return ..math.max(maxWidth, this.minWidth); }; popup = function(x, y, isSubmenu){ if(this.menuFrm) this.closeChain(); if( !(x && y) ){ x, y = ..win.getMessagePos(); } this.width = this.calcWidth(); var totalH = 6; for(i, item in this.items){ totalH += item.isSeparator ? 6 : this.itemHeight; } if(!isSubmenu){ x += 20; y += 20; } var screenRect = ..win.getWorkArea(); if(isSubmenu && this.ownerMenu && this.ownerMenu.menuFrm){ if(x + this.width > screenRect.right){ var parentRect = this.ownerMenu.menuFrm.getRect(true); x = parentRect.left - this.width; } } else { if(x + this.width > screenRect.right){ x = x - this.width - 50; } } if(y + totalH > screenRect.bottom) y = screenRect.bottom - totalH; if(x < screenRect.left) x = screenRect.left; if(y < screenRect.top) y = screenRect.top; var frm = ..win.form( parent = this.parentWnd; title = false; right = this.width; bottom = totalH; border = "dialog frame"; exmode="toolwindow"; mode="popup"; bgcolor = this.backgroundColor; ); this.menuFrm = frm; var currentY = 3; var menuRef = this; var arrowBmpDefault = this.arrowBitmapDefault; var arrowBmpHover = this.arrowBitmapHover; for(i, item in this.items){ if(item.isSeparator){ frm.add({ ["sep" ++ i] = { cls="plus"; left=8; top=currentY+2; right=menuRef.width-8; bottom=currentY+3; bgcolor=0xE0E0E0; z=i } }); currentY += 6; continue; } var hasSubmenu = !!item.submenu; var isDisabled = item.disabled; var ctrlArgs = { cls="plus"; left=0; top=currentY; right=menuRef.width; bottom=currentY+menuRef.itemHeight; text=item.text; align="left"; font=LOGFONT(h=-menuRef.fontSize); color=isDisabled ? 0xFFBBBBBB : 0x333333; textPadding={left=35; right=hasSubmenu ? 16 : 8}; notify=1; z=i; }; var iconIsBitmap = false; if(item.icon){ if(type(item.icon)==type.string && #item.icon<=8){ ctrlArgs.iconText = item.icon; ctrlArgs.iconStyle = { font=LOGFONT(h=-menuRef.iconSize; name='FontAwesome'); align="left"; padding={left=7}; }; } else { ctrlArgs.foreground = item.icon; ctrlArgs.foreRepeat = "point"; ctrlArgs.foreAlign = "left"; ctrlArgs.x = 8; ctrlArgs.y = (menuRef.itemHeight-16)/2; iconIsBitmap = true; } } if(hasSubmenu){ if(iconIsBitmap){ ctrlArgs.iconText = '\uF054'; ctrlArgs.iconStyle = { font=LOGFONT(h=-10; name='FontAwesome'); align="right"; padding={right=9}; }; } else { ctrlArgs.foreground = arrowBmpDefault; ctrlArgs.foreRepeat = "point"; ctrlArgs.foreAlign = "left"; ctrlArgs.x = menuRef.width - 22; ctrlArgs.y = (menuRef.itemHeight - 16) / 2; } } var ctrl = frm.add({ ["item" ++ i] = ctrlArgs })["item" ++ i]; if(isDisabled){ ctrl.skin({ background={default=menuRef.backgroundColor}; color={default=0xFFBBBBBB}; }); } else { var skinArgs = { background={default=menuRef.backgroundColor; hover=0xFFE8F0FE; active=0xFFD0E0FC}; color={default=0xFF333333; hover=0xFF0078D4}; }; if(hasSubmenu && !iconIsBitmap){ skinArgs.foreground = {default=arrowBmpDefault; hover=arrowBmpHover; active=arrowBmpHover}; } ctrl.skin(skinArgs); } var callback = item.callback; var submenuRef = item.submenu; var itemIndex = i; var itemTop = currentY; if(!isDisabled){ ctrl.onMouseHover = function(){ if(hasSubmenu){ if(menuRef.hoverIdx == itemIndex) return; menuRef.openSubmenu(itemIndex, itemTop, submenuRef); } else { menuRef.closeChild(); } }; if(!hasSubmenu){ ctrl.onMouseClick = function(){ menuRef.getRoot().closeChain(); if(callback) callback(); }; } } currentY += menuRef.itemHeight; } frm.wndproc = function(hwnd, message, wParam, lParam){ if(message == 0x111/*_WM_COMMAND*/){ if(wParam & 0xFFFF == 2/*_IDCANCEL*/){ menuRef.getRoot().closeChain(); return true; } } if(message == 0x6/*_WM_ACTIVATE*/){ if((wParam & 0xFFFF) == 0){ frm.setTimeout(function(){ if(menuRef.inClosing) return; var activeHwnd = ..win.getForeground(); var isOwn = false; var scan = menuRef.getRoot(); while(scan){ if(scan.menuFrm && scan.menuFrm.hwnd == activeHwnd){ isOwn = true; break; } scan = scan.childMenu; } if(!isOwn){ menuRef.getRoot().closeChain(); } }, 100); } } } frm.setPos(x, y); if(isSubmenu){ frm.show(0x4/*_SW_SHOWNOACTIVATE*/); } else { ..win.setForeground(frm.hwnd); frm.show(); } }; } var imgPath1 = "https://cdn-icons-png.flaticon.com/512/724/724713.png"; var bmpIcon = gdip.bitmap(imgPath1).resize(18,18); // ==================== 演示 ==================== /*DSG{{*/ var winform = win.form(text="自定义弹出菜单 - 支持子级菜单";right=759;bottom=469) winform.add( hint={cls="bk";text="右键点击窗口,弹出自定义菜单";left=192;top=178;right=551;bottom=266;color=0x999999;db=1;dl=1;dr=1;dt=1;font=LOGFONT(h=-16);z=1} ) /*}}*/ winform.wndproc = function(hwnd, message, wParam, lParam) { if(message == 0x205/*_WM_RBUTTONUP*/){ var subMenu1 = customPopMenu(winform); subMenu1.add("新建文件", function(){ winform.msgbox("点击了: 新建文件","提示"); }, '\uF016'); subMenu1.add("打开文件", function(){ winform.msgbox("点击了: 打开文件","提示"); }, '\uF07C'); subMenu1.addSeparator(); subMenu1.add("保存文件", function(){ winform.msgbox("点击了: 保存文件","提示"); }, '\uF0C7'); var subMenu2 = customPopMenu(winform); subMenu2.add("用户管理", function(){ winform.msgbox("点击了: 用户管理","提示"); }, '\uF007'); subMenu2.add("角色管理", function(){ winform.msgbox("点击了: 角色管理","提示"); }, '\uF0C0'); var privacyMenu = customPopMenu(winform); privacyMenu.add("密码策略", function(){ winform.msgbox("点击了: 密码策略","提示"); }, '\uF023'); privacyMenu.add("登录日志", function(){ winform.msgbox("点击了: 登录日志","提示"); }, '\uF02B'); privacyMenu.add("IP白名单", function(){ winform.msgbox("点击了: IP白名单","提示"); }, '\uF0AC'); subMenu2.add("隐私与安全", null, '\uF023', privacyMenu); var menu = customPopMenu(winform); menu.backgroundColor = 0xFFFFFFFF; menu.add("账户信息", function(){ winform.msgbox("点击了: 账户信息","提示"); }, '\uF007'); menu.add("搜索查找", function(){ winform.msgbox("点击了: 搜索查找","提示"); }, '\uF002'); menu.add("文件操作", null, '\uF15B', subMenu1); menu.add("系统设置", null, '\uF013', subMenu2); menu.add("位图图标子菜单", null, bmpIcon, subMenu1); var exportItem = menu.add("导出数据", function(){ winform.msgbox("点击了: 导出数据","提示"); }, '\uF1C3'); exportItem.disabled = true; // 禁用项示例 menu.addSeparator(); menu.add("返回主页", function(){ winform.msgbox("点击了: 返回主页","提示"); }, '\uF015'); menu.add("反馈与交流", function(){ winform.msgbox("点击了: 反馈与交流","提示"); }, '\uF075'); menu.addSeparator(); menu.add("退出程序", function(){ winform.close(); }, '\uF011'); menu.popup(); } } winform.show(); win.loopMessage(); -
-
-
-
yujinshun
大佬,能写一个类似QQ截图的功能吗?研究了好久,没搞出来,想把这个功能集成到我的工具上 -
