// 利用 gdi 绘制动态正弦曲线 @Mr_MAO
import win.ui;
/*DSG{{*/
var winform = win.form(text="gdi 绘制动态正弦曲线";right=600;bottom=264)
/*}}*/
var arr = {}; //存储曲线坐标点数组
var x = 0; //角度
var m = 10; //每个点的水平间距
var i = 0.25; //波长系数
var pt = ::POINTF();
winform.setInterval(
function(){
// 让角度在 0 到 2*PI/i 之间循环
var period = (2 * math.pi) / i;
x = (x + 1) % period;
var y = math.sin( x * i) ;
// 移除数组第一个元素(左侧)，实现向左滚动
if(#arr > winform.clientRect.right / m + 1){
table.remove(arr);
}
table.push(arr, y);
//强制刷新
winform.redraw();
},60
)
//v43.1新版onPaint()默认支持双缓冲绘图
winform.onPaint = function(hdc,rcPaint,fErase,width,height){
//填充背景颜色
gdi.selectBrush(
function(hdc,pen,brush){
::FillRect(hdc,::RECT(0, 0, width, height),brush);
},hdc,0x800000
)
//画网格线
gdi.selectPen(
function(hdc,pen){
::SetBkMode(hdc, 1/*_TRANSPARENT*/) //消除虚线的背景色
//1画垂直线
for(x=30; width; 30){
::MoveToEx(hdc, x, 0, pt);
::LineTo(hdc, x, height);
}
//2画水平线
for(y=30; height; 30){
::MoveToEx(hdc, 0, y, pt);
::LineTo(hdc, width, y);
}
},hdc,0x13CED1/*color*/,1/*width*/,4/*_PS_DASHDOTDOT*/
)
//定Y轴起点位置
var centerY = height / 2;
//振幅系数 (可随窗体高度变化)
var n2 = centerY / 3;
//画曲线阴影 (可省略)
var offsetX, offsetY = 3, 0;
gdi.selectPen(
function(hdc,pen){
for(k, v in arr){
var px = (k - 1) * m + offsetX;
var py = v * n2 + centerY + offsetY;
if(k == 1) ::MoveToEx(hdc, px, py, pt);
else ::LineTo(hdc, px, py);
}
},hdc,0x333333/*color*/,6/*width*/,0/*_PS_SOLID*/
)
//画正弦波
gdi.selectPen(
function(hdc,pen){
for(k, v in arr){
var px = (k - 1) * m;
var py = v * n2 + centerY;
if(k == 1) ::MoveToEx(hdc, px, py, pt);
else ::LineTo(hdc, px, py);
}
},hdc,0x0000FF/*color*/,3/*width*/,0/*_PS_SOLID*/
)
}
winform.show();
win.loopMessage();
最新回复 (4)
-
-
-

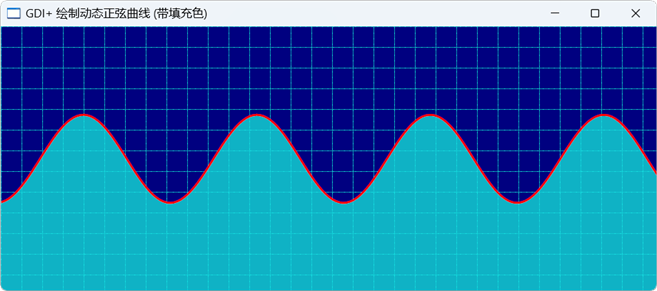

再给一个用 gdip 绘制正弦曲线的例子：
// 使用 gdip 绘制动态正弦曲线（带填充背景） import win.ui; /*DSG{{*/ var winform = win.form(text="GDI+ 绘制动态正弦曲线 (带填充色)";right=759;bottom=469;clipch=1) winform.add( plus={cls="plus";left=21;top=20;right=705;bottom=444;z=1} ) /*}}*/ var datas = {}; var x = 0; // 角度 var m = 10; // 每个点的水平间距 var i = 0.25; // 波长系数 var dataGenerator = function(arr){ var period = (2 * math.pi) / i; x = (x + 1) % period; var y = math.sin( x * i) ; // 移除数组第一个元素（左侧），实现向左滚动 if(#arr > winform.plus.clientWidth / m + 2){ table.remove(arr, 1); } table.push(arr, y); } winform.setInterval( function(){ //每 50ms 随机生成一组数据 dataGenerator(datas); //重绘界面，形成动画 winform.plus.redraw(); }, 50 ) winform.plus.onDrawBackground = function(graphics,rc,backgroundColor,color){ // 1. 绘制背景 graphics.clear(0xFF000080); var width, height = rc.width, rc.height; // 2. 绘制网格线 var gridPen = gdip.pen(0xFF13CED1, 1); gridPen.dashStyle = 4; for(gx = 0; width; 30){ graphics.drawLine(gridPen, gx, 0, gx, height); } for(gy = 0; height; 30){ graphics.drawLine(gridPen, 0, gy, width, gy); } gridPen.delete(); // 3. 绘制正弦波 if(#datas >= 3){ // 闭合曲线至少需要3个点 var centerY = height / 2; var amplitude = centerY / 3; var points = {}; for(k, v in datas){ var px = (k - 1) * m; var py = v * amplitude + centerY; table.push(points, px, py); } // 创建填充路径 var fillPoints = table.clone(points); table.push(fillPoints, ( (#datas)-1 ) * m, height); // 移动到右下角 table.push(fillPoints, 0, height); // 移动到左下角 var wavePen = gdip.pen(0xFFFF0000, 3, 0); var waveBrush = gdip.solidBrush(0x8819ECEF); //绘制填充色（使用 Polygon） graphics.fillPolygon(waveBrush, fillPoints); //绘制波浪曲线 graphics.drawCurve(wavePen, points); waveBrush.delete(); wavePen.delete(); } } winform.adjust = function( cx,cy,wParam ) { winform.plus.setPos(0,0,cx,cy); }; winform.show(); win.loopMessage(); -
